Tube Deburring Machines

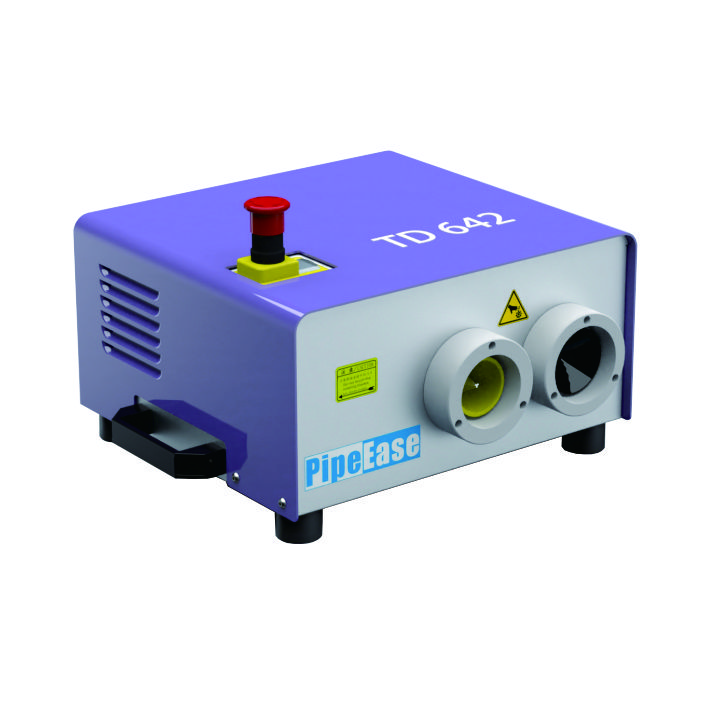

钢管去毛刺机 TD 642
This machine carries out both internal and external deburring of rigid tubes in stainless (AISI 316 TI) and carbon steel (ST 37.4) tubes, with a diameter ranging from 6 to 42 mm. The TD 642 deburring device guarantees proper removal of burrs, leaving the edge of the tube uniformly clean and smooth.
本机可进行不锈钢(AISI, 316, TI)和碳钢(ST, 37.4)管的内部和外部去毛刺,直径范围从6到42毫米。 TD 642去毛刺装置保证适当去除毛刺,使管的边缘均匀清洁和光滑。
TECHNICAL DATA
内毛刺范围 | INTERNAL DEBURRING | 6-42mm |
外毛刺范围 | EXTERNAL DEBURRING | 6-42mm |
材质 | Materials | AISI316TI/ST37.4 |
重量 | Weight | 30kg |
电压 | Voltage | 230V 50HZ 1PH |
电机功率 | Motor Power | 0.18KW |
外形尺寸 | Dimensions | 406×470×270mm |
内外去毛刺刀具 | INT./EXT. DEBURRING TOOLS 6-42 mm | Incl. |
