产品编号A100055

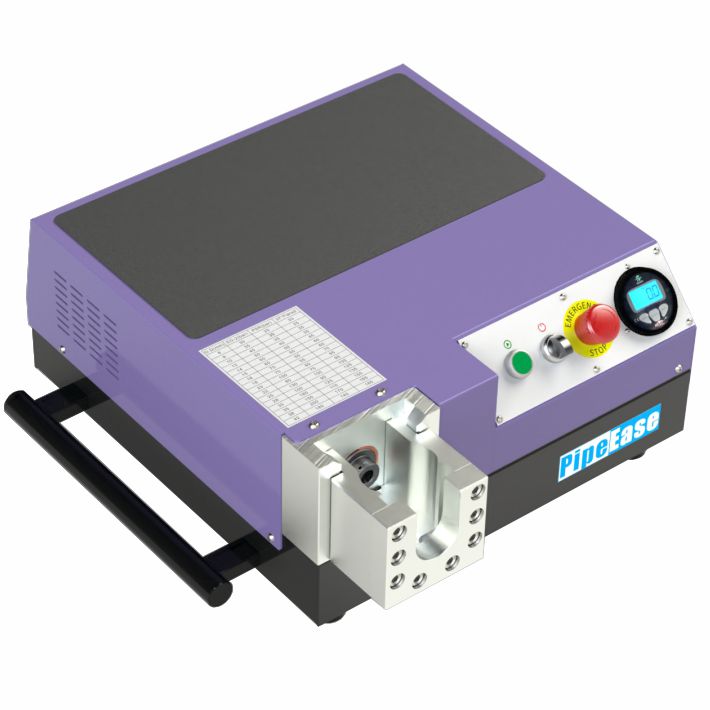

Cutting ring assembly and flaring machine
卡套预装/扩口两用机 PPA/F-642
TECHNICAL DATA
| 用途 | Purpose | Cutting ring assembly卡套预装/flaring 扩口 |
| 管径 | Tube diameter | 6-42mm |
| 成型力 | Feed force | 173 kN |
| 油缸行程 | Maximal stroke | 40mm |
| 成型速度 | Feed rate | 6.9 mm/s |
| 后退速度 | Back stroke speed | 31mm/s |
| 成型压力 | Operating pressure | up to 200 bar |
| 重量 | Weight | 66Kg |
| 电机功率 | Motor Power | 1.2 KW |
| 电压 | Voltage | 380V 50Hz 3PH |
| 液压油 | Oil | Incl. |
| 设备外形 | Dimensions | 515×660×265 |
